Ultimate compact controller board designed for DIY projects where a super small form factor is required, as well as robotics, automation systems, IoT, and education. It combines multiple interfaces and supports a wide input power range, making it suitable for beginners (including kids starting with robotics) as well as advanced developers.

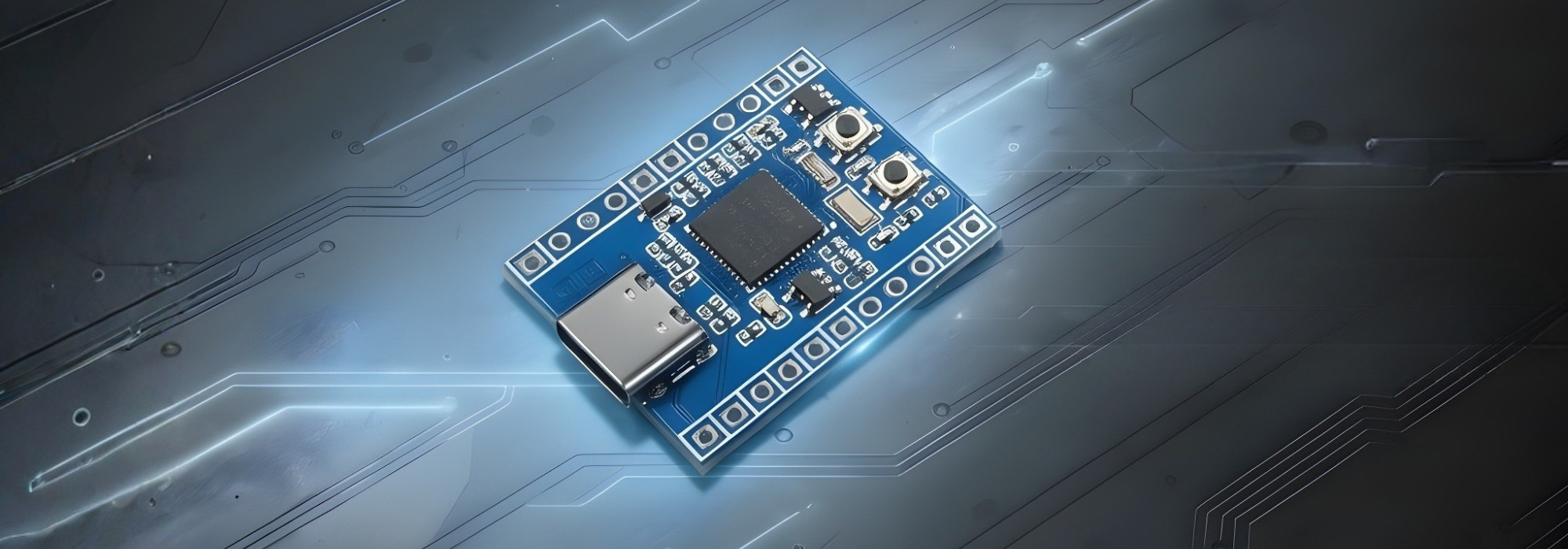

R1BBIT PICO
The Ultimate Compact Control Board for Your DIY Creations
Power: DC IN: 8–50 V / USB Type-C
Product Details
Example Uses
- Smart-home and automation systems, hobby projects, teaching children and adults the basics of robotics, DIY projects of various kinds.
- Robotics (servos, stepper motors, various sensors)
- IoT projects with cloud connectivity
- Educational projects in electronics and programming
- Up to 8x DS1820 temperature sensors
- 1x DHT20/21/22 humidity and temperature sensor
- Display support over SPI and I²C buses
The biggest advantage of R1BBIT boards is the built-in lightweight scripting language similar to Basic. It includes syntax checking, color highlighting of data and operators for easy coding and debugging. This advantage is so significant that we will describe it in detail in the software section, covering its operators, ways to interact with the board, and how to run scripts directly on the device.
Easy control from a mobile app or desktop software.
Specifications
Power
DC IN:
8–50 V
USB
Type-C

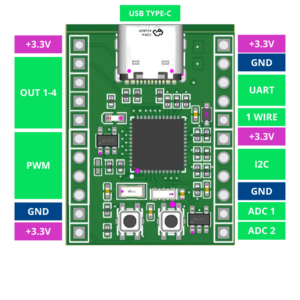

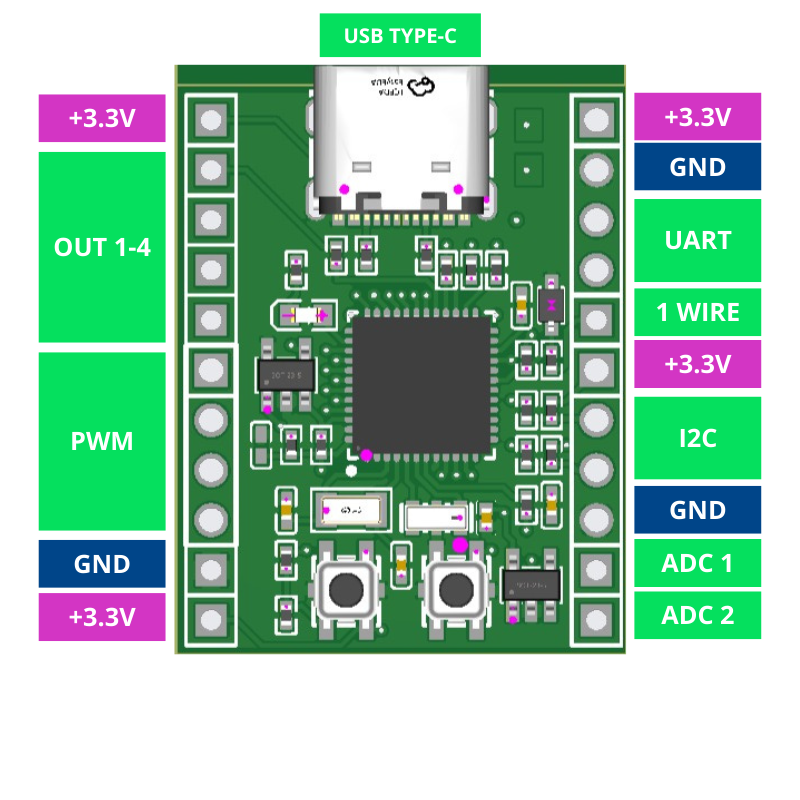

Interfaces & Connectors
Analog Inputs
ADC0–ADC5:
0–6V
Digital Outputs
OUT1–OUT2:
Two high-voltage relays up to 250V / 10A.
OUT3–OUT7:
Five controlled outputs with 3.3V pull-up.
OUT8–OUT11:
Four controlled outputs with pull-down to GND.
PWM
PWM 1.1–2.2 CH1 and CH2:
4 channels of high-frequency PWM outputs
Digital Interfaces
UART
Pins:
RX, TX, GND, +3.3 V
Type:
point-to-point
